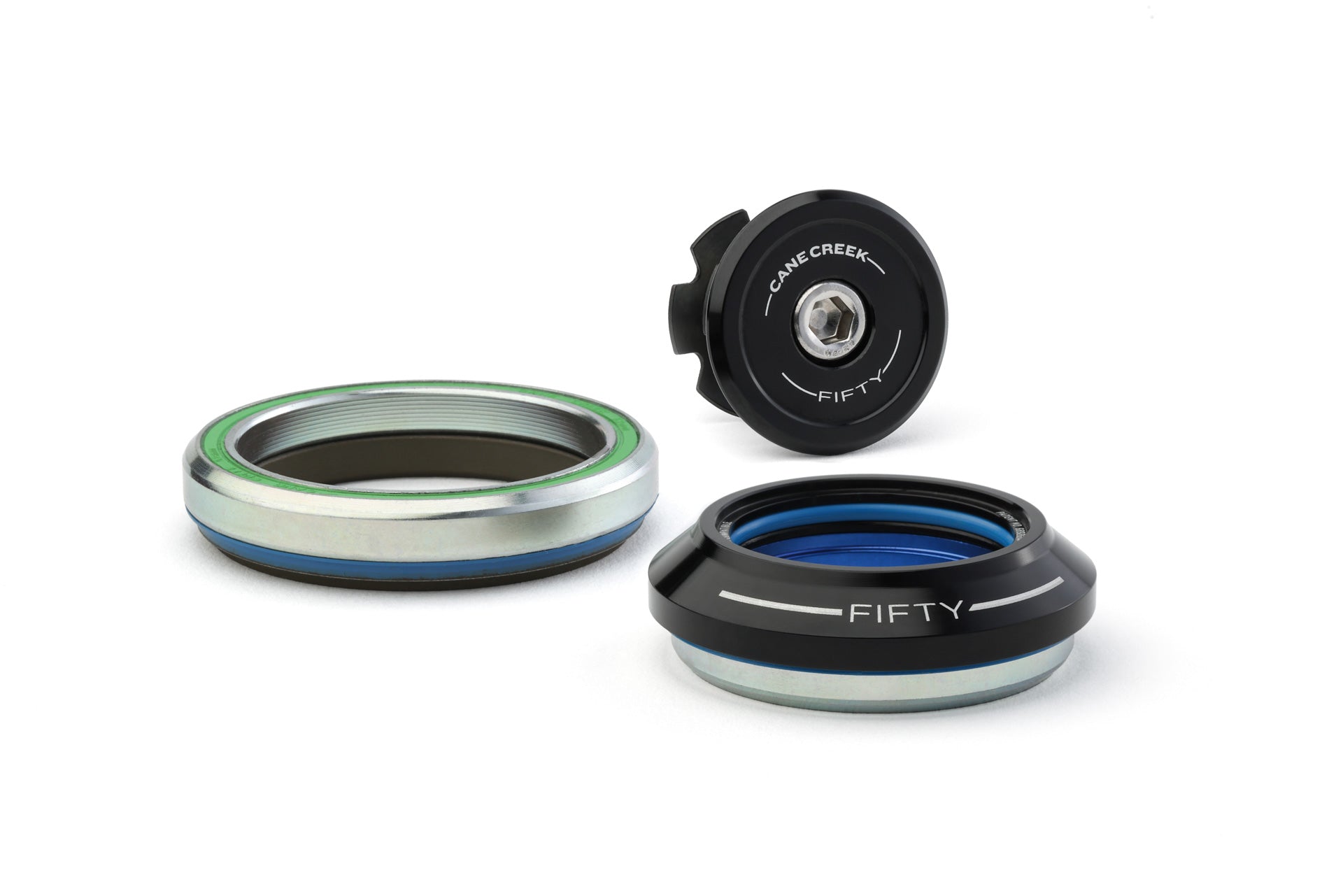

Cane Creek Headset | 50 Series | IS41/28.6 H9 |IS52/40 Santa Cruz 47mm OD

This is a complete headset for Santa Cruz bikes using the wider 47mm top cover on 50 Series headsets

New Look, Same Reliability.

Slotting immediately in between the Forty series and Hellbender 70 headsets, Fifty series brings a new, modern aesthetic while maintaining a relatively affordable price. Additional machining on the top cover and cups along with refined, laser-etched graphics give the headset a sharper, more angular appearance that feels more appropriate for today’s bikes. Precision engineered by Cane Creek in Fletcher, NC.

SPECIFICATIONS:

• CUPS & COVERS: 6061 T-6 Aluminium - Internally relieved to reduce weight
• BEARINGS: ZN40 sealed cartridge bearings, zinc-coated for corrosion resistance
• SEALING: Steerer tube o-ring seal, low friction top cover lip seal, co-molded crown race lip seal
• COMPRESSION RING: Carbon-friendly compression ring retained in top cover
• CROWN RACE: Steel: forged, then machined for increased hardness & durability
• SPACERS: Compatible with Cane Creek Interlok spacers + traditional. Spacers sold separately
• STACK HEIGHTS:
• External Cup (EC) — 15mm top, 11mm bottom
• ZeroStack (ZS) — 8mm top, 4mm bottom
• Integrated (IS) — 9mm top, 1mm bottom
