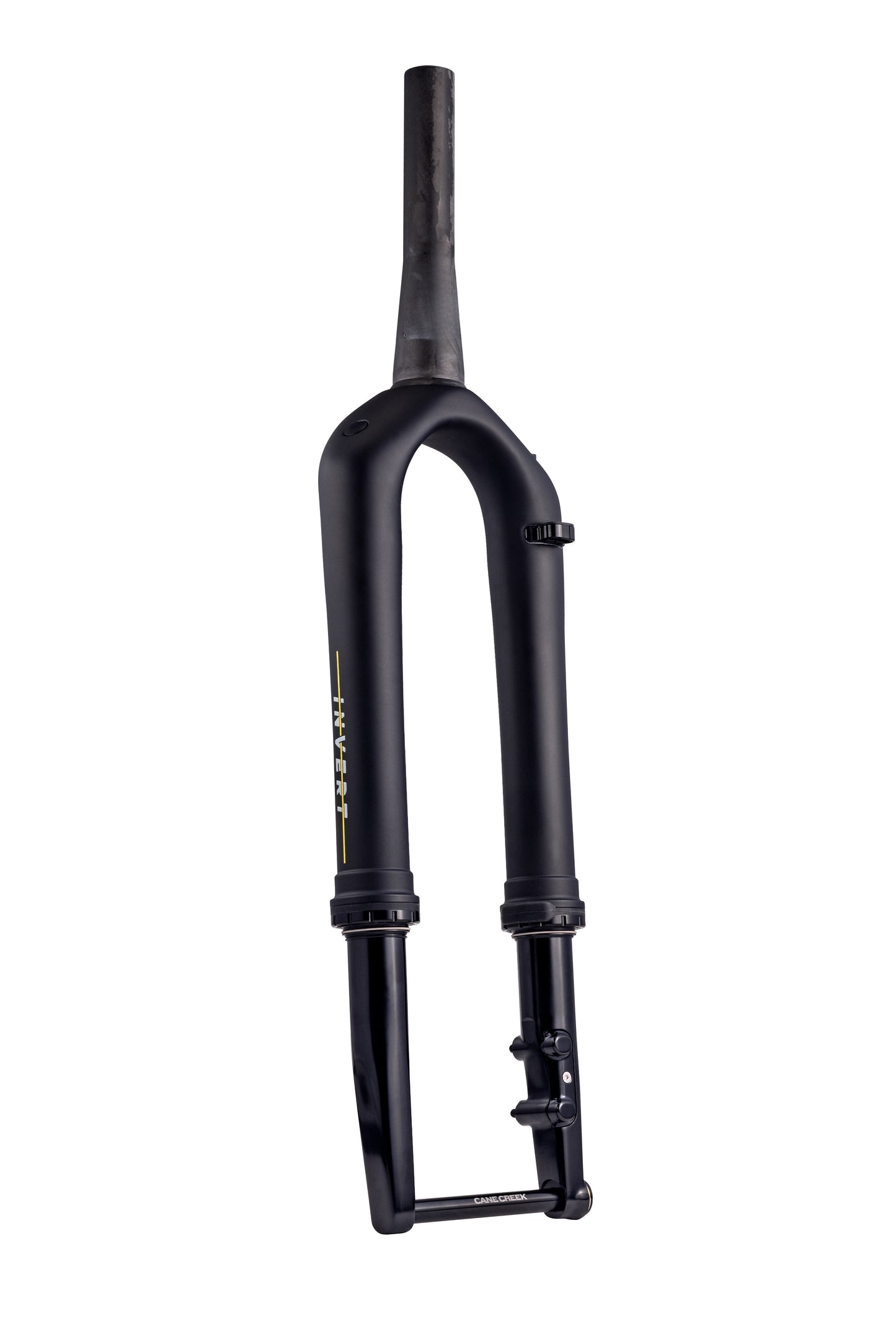

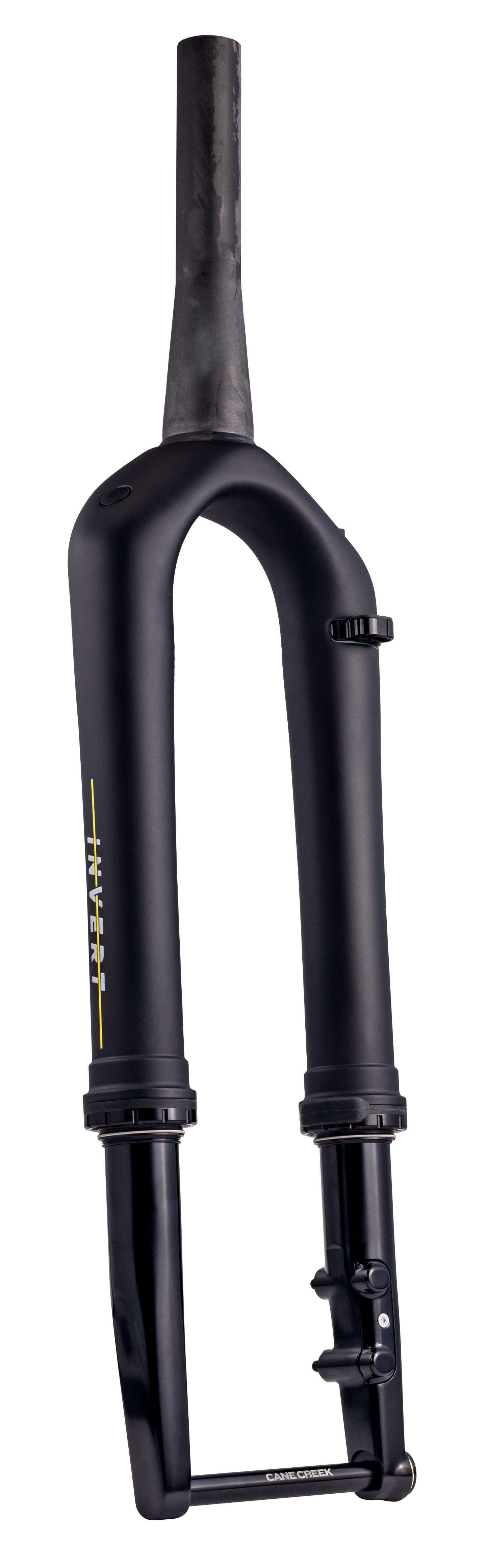

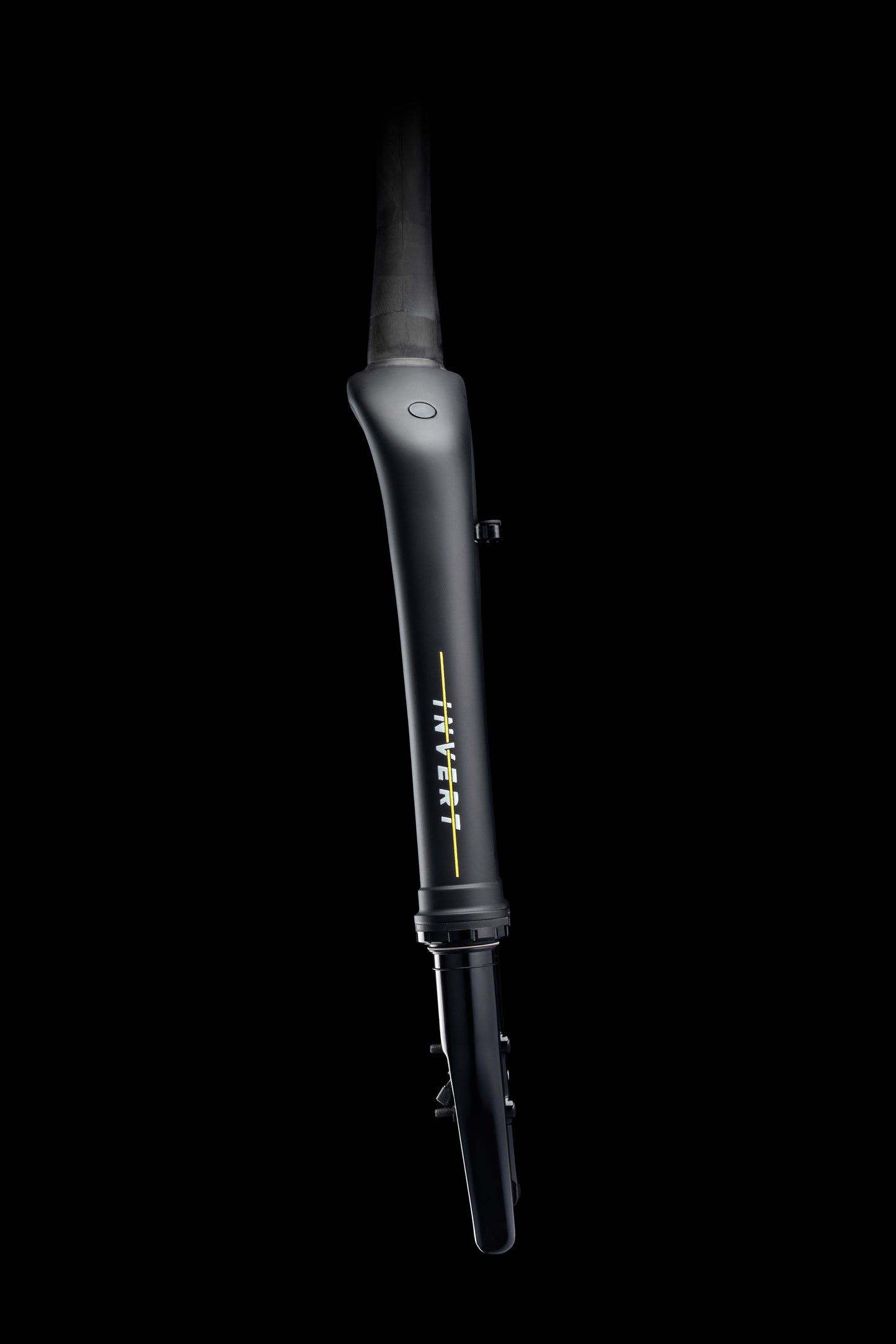

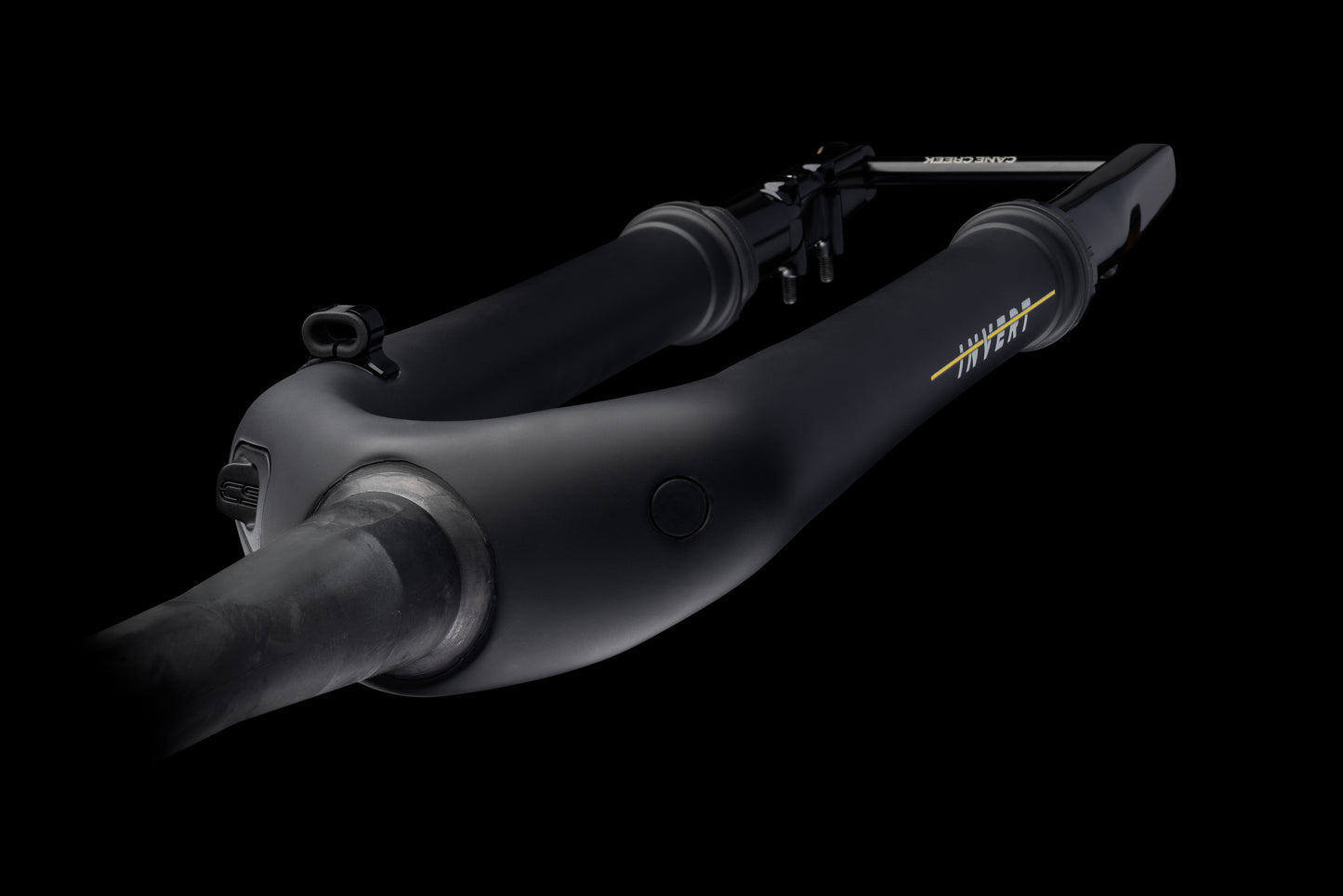

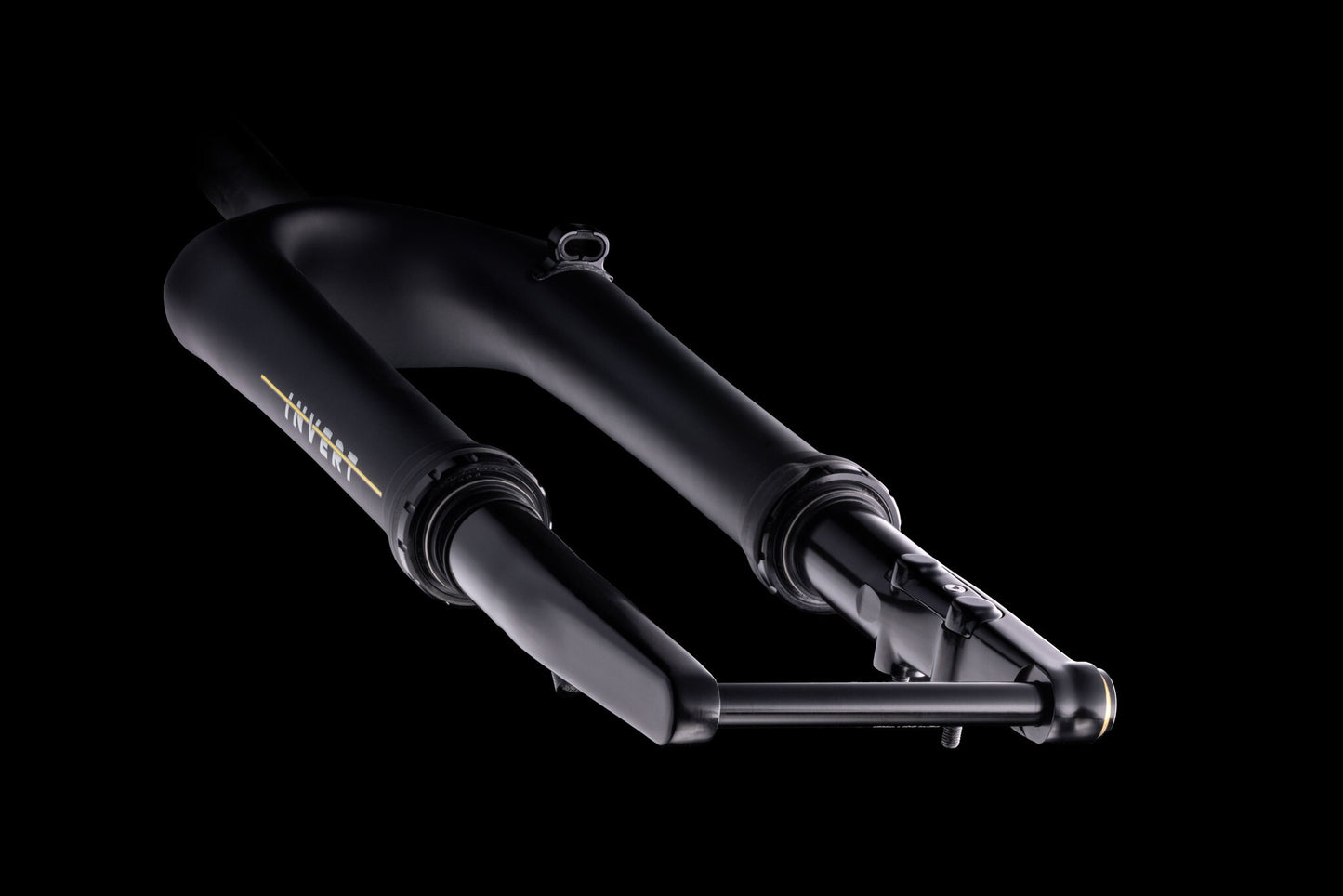

Cane Creek Invert Gravel Fork
Cane Creek Invert Gravel Fork
Please login or create an account to view the price
Invert is the World’s First Gravel Fork.
Invert smoothes your ride and gives unbelievable control of your bike on rough roads, loose turns, and steep descents. It’s surprisingly lightweight, easy to use, and strikingly attractive. Until this point, no fork made for drop bars has been able to combine the smooth ride, lightweight, simplicity, and good looks into one complete package.
Riding beyond the pavement can be rough, physically taxing, and unpredictable. Invert goes straight to the source of this problem to offer a smoother ride with more traction, both uphill and down. With Invert, you’ll be more efficient, more relaxed, and have confidence to glide over gravel like you’ve never experienced before.
Invert CS (Climb Switch, 40mm, 1113g)
Invert SL (No Climb Switch, 30mm, 990g)
|
Weight |
990g (SL) / 1113g (CS) |
|
Travel |
30mm (SL) / 40mm (CS) |
|
Chassis |
Carbon fiber crown & steerer bonded to aluminum upper tubes |
|
Lowers |
One piece, forged and machined 30mm stanchions with integrated hidden brake caliper bolts and hidden thru axle |
|

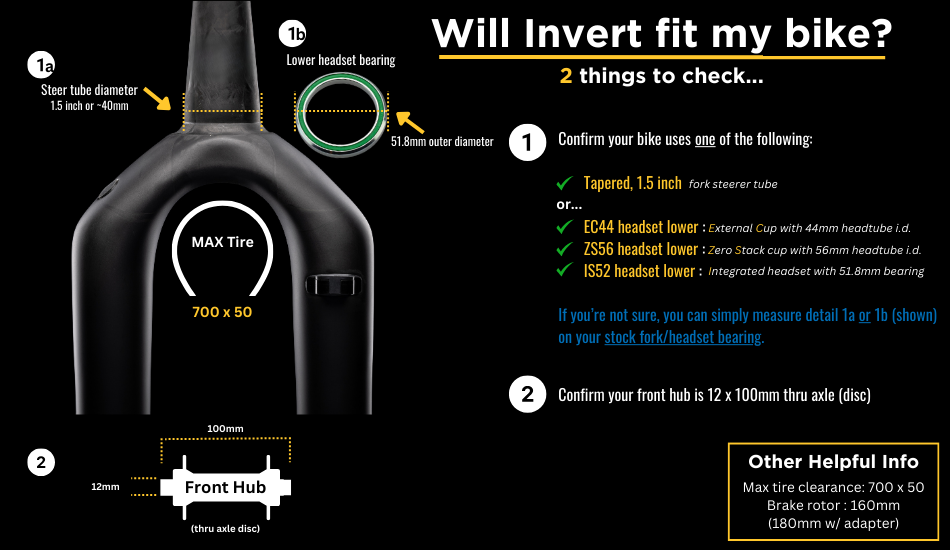

Max Tire Size |
700c x 50mm |
|
Brake |
Flat mount disc for 160mm rotor (hardware included) |
|
Hub Spacing |
12mm x 100 Thru Axle (axle included) |
|
ATC / OFFSET |
SL – 425mm / 45mm |
|
Steerer Tube |
1 1/8” to 1.5” Tapered (28.6mm to 40mm) |
|
Crown Race |
Integrated, 36 degree angle |
|
Adjustments |
Air Spring adjusts for rider weight, Climb Switch on Invert CS engages firm mode out of saddle pedaling. Single-click activation dramatically reduces fork movement. |
|
Warranty |
2 Years |
|
Recommended Service Interval |
50 Hours: Splash oil flush – no special tools, no major disassembly |
|
Rider Weight Limit/Max PSI |
250 lbs / 250 psi |
|
Part Numbers |
Invert CS – 40mm Travel: BBG0005 |
|
Included |
Ancora Premium Expansion Plug |
-
-
